/ Monza 3 Lever SQ Brushed Steel 3 Way Tap

Monza 3 Lever SQ Brushed Steel 3 Way Tap

Monza 3 Lever SQ Brushed Steel 3 Way Tap

£250.00
Beautifully and skillfully crafted 3 way tap. A new addition to the SQ range of kitchen taps.


SKU: MonzaSQ

Product Description

Despatched for 1 or 2 day delivery, depending on stock.

Our Monza SQ brushed steel 3 way tap combines practicality with functionality. It has a beautifully designed double curved quad spout with a single aerator at the end. This 3 way tap is very stylish and will compliment any modern kitchen.

The edges on the SQ body have been skillfully crafted resulting in a sophisticated and professional looking 3 way tap.

The Monza SQ 3 way tap has a standard hot on the left and cold on the right with the middle lever delivering fresh filtered water.

This is a dual flow 3 way tap. It has a heat resistant plastic tube within the quad spout which has been tested to temperatures far above normal hot water.

Supplied with 3 x 400mm flexible hoses which can connect to both copper and compression fittings.

You will receive the Solid Fix Installation Kit which offers increased support around the base.

The SQ style is also available in the following spout options - Aquila, Milano, Verona and Sorrento styles.

Technical info

Spout Dual flow, single aerator, Quad design
Operation Left - hot, Right - cold, Middle - filtered

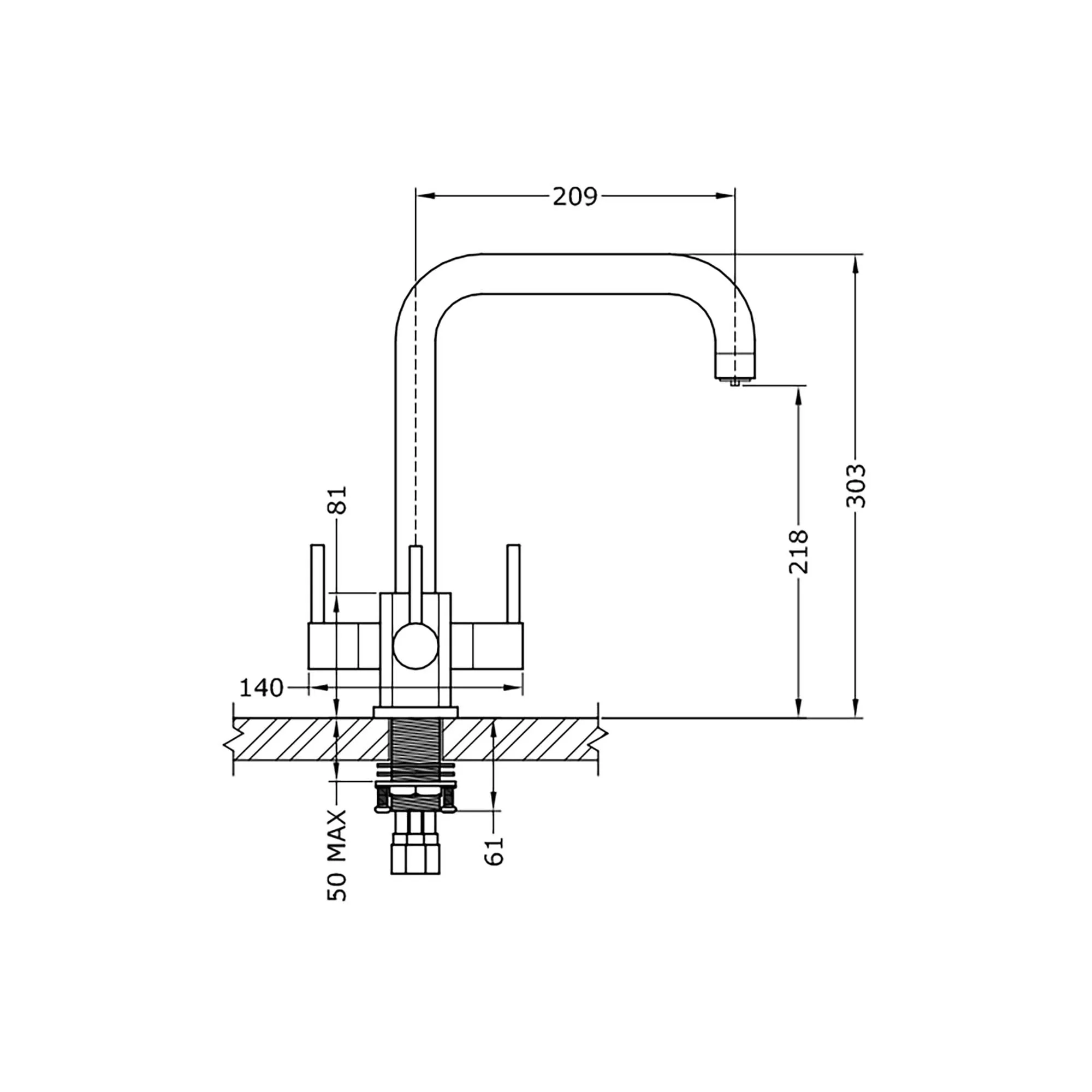

Dimensions 335mm high & 209mm reach
Pressurised Water System Yes
Gravity with Booster Pump Yes
Combi Boiler System Yes
Conventional Gravity (open plumbing system) Yes - 5M of head
Minimum recommended pressure 0.5 bar
Flow Rate Hot & Cold (litre per minute) Hot 6.20 L/M @ 0.5 bar
Aerator Honeycomb
Flexible hose inlet 10mm
Hot & Cold flexible hose outlet 1/2 inch female with adapter
Filtered Flexible hose outlet 1/2 inch female with adapter
Flexible hose length 350mm
Recommended hole diameter 35mm
Sink/Worktop thickness 0-50mm
Footprint diameter 50mm
Workmanship & parts warranty 3 years
Finish warranty 1 year

Which tap adapter do I need?

You can select either a 1/4" or 3/8" tap adapter when buying one of our 3 way taps.

This converts the 1/4" (or 3/8") tubing that comes with the water filter to connect to the tap tails.
