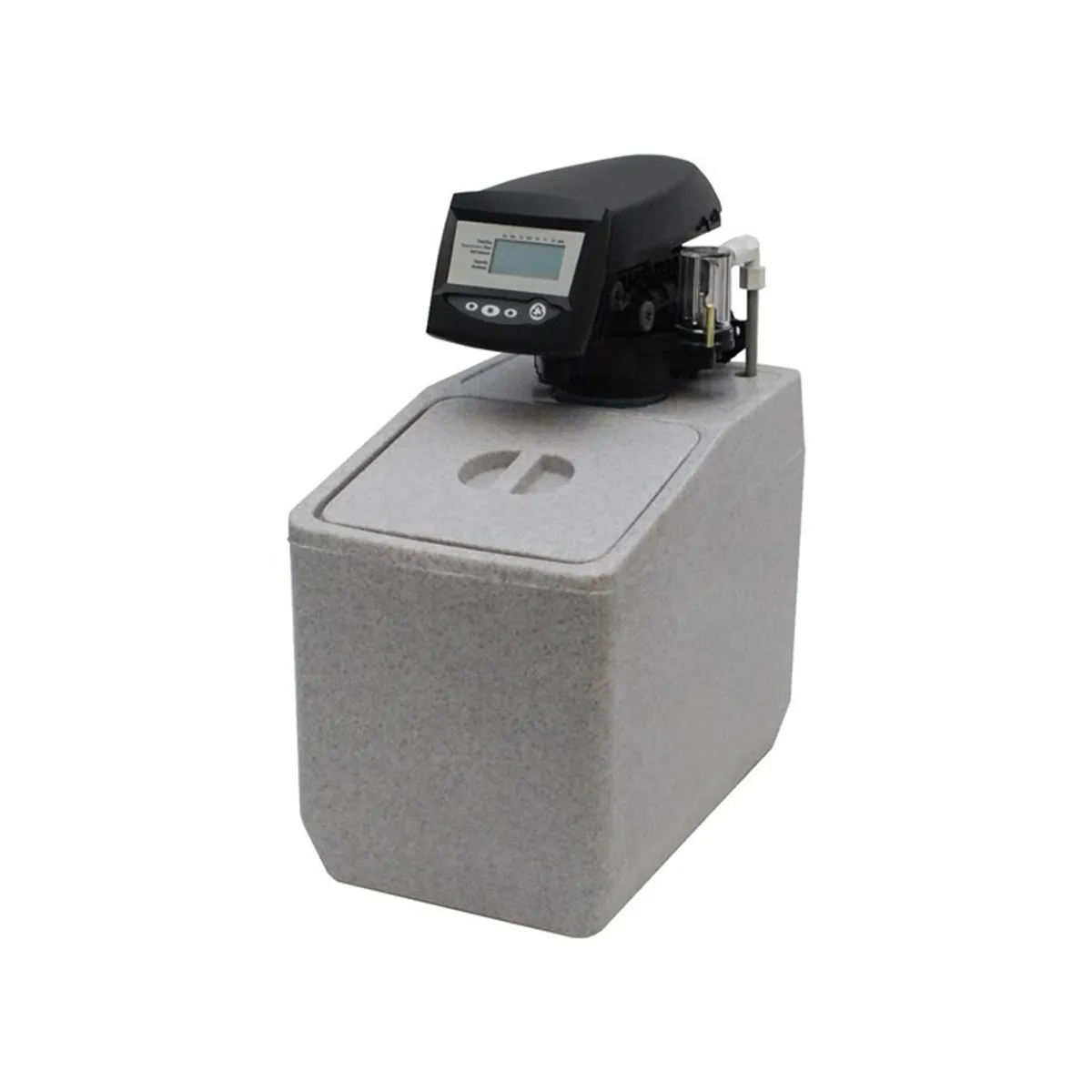

Coral Water Softener

With Ultra-compact dimensions and a timed regen. valve these tiny water softeners are both reliable and efficient. This is a small model has combined high flow and softening capacity due to its unique 10×13 mineral tank size. That means it fits easily under the kitchen sink.

Flow rate: 1.2 m³/h

Resin quantity: 10L

Volume capacity: 2m³

Salt use per regeneration: 1.0kg

Height: 469cm

Water use per regeneration: 0.08m³

Features

• Ultra compact dimension, hight 469 mm
• Reliable US-made Clack® DV with mixing valve
• Up-flow proportional regeneration for smart consumption
• Effective salt consumption: 80 grams per liter of resin or less
• Water-saving: uses up to 100 liters for regeneration

Dimensions

Specifications

Components:

• Pre-adjusted US-made Clack® DV with mixing valve
• Cabinet enclosure
• Pressure tank
• Brine well with safety float valve
• Ion-exchange resin DOWEX™ HCR-S/S

Technical specifications

• Operating Flow rate — 1.2 m³/h
• Quantity of media — 10 L
• Volume capacity* — 2 m³
• Usage of salt per regeneration** — 0.8 kg
• Usage of water per regeneration — 0.08 m³
• Duration of regeneration — 80–110 minutes
• Pressure drop in service mode — 0.5 bar
• Inlet pressure — 2–6 bar
• Electrical requirements — 230 V, 50 Hz
• Power consumption — 30 W
• Inlet/outlet pipe connections — 3/4’’

*for hardness at 5 meq/L (250 mg/L CaCO₃)

**it is recommended to use Ecosil pelletized salt for regeneration

Influent water limitations

• Hardness - 15 meq/L (750 mg/L CaCO₃)
• Iron - 0.2 mg/L
• Manganese - 0.05 mg/L
• Required level of purification of sediment particles - 100 μm
• Initial water temperature - +4 to +30 °С
