Product Description

HydroTAC Salt-Free Scale Prevention and Water Filtration Systems use a commercially-trusted, physical water treatment technology to keep scale from forming on pipes and reducing appliance life, along with a high-capacity water filter to remove foul tastes, odours, and sediments for better tasting tap water. A single, compact unit with dual cartridges replaces a space-consuming water softening system and water filtration system — using no salt, chemicals, or electricity.

Better still, it's only 47.6cm tall and doesn't require space underneath for cartridge changes. That means it will fit in your undersink cupboard, unlike most other waters softeners and scale reduction systems.

With a 37 litres per minute maximum flow rate this system is ideal for the whole house up to 5 bedrooms and 2 to 3 bathrooms.

Features

Effective template-assisted crystallisation (TAC) technology prevents mineral buildup
High-capacity, 20-micron water filter removes chlorine taste and sediment
One long-lasting cartride replaces three years of salt
No backwashing or regeneration required, with zero wastewater to drain

Easy to Install

There are no electrical connections or backwash drains so all you need to do is pipe water in on one side and out on the other.

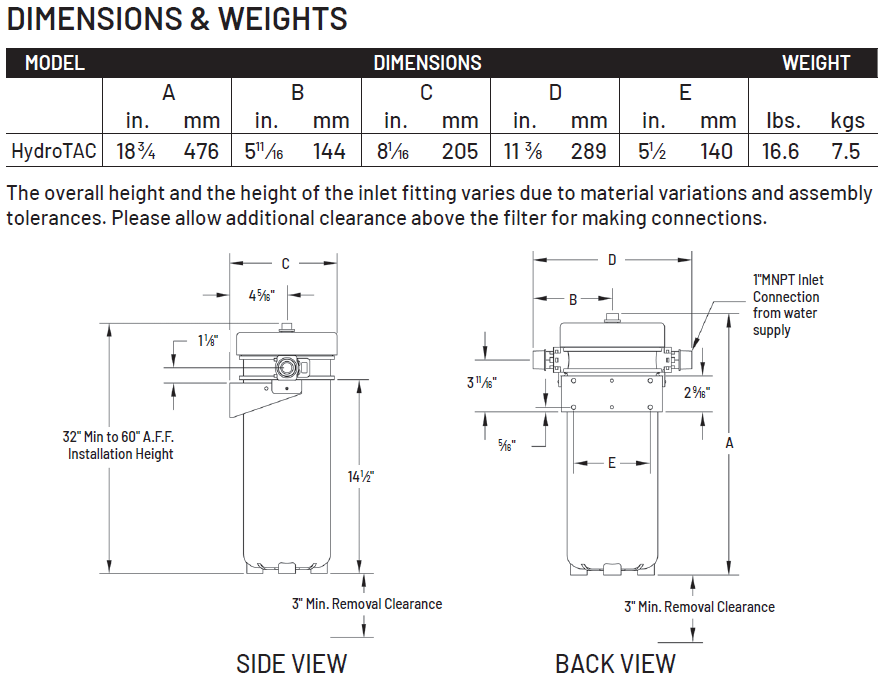

Dimensions

Height: 476mm - Width: 289mm - Depth: 205mm

Dimensions table

Important information about TAC media

Add water to the canister containing the TAC media and leave it to stand for two hours before dropping it into the housing. If you don't do this some of the smaller particles can escape into the pipework and be lost.

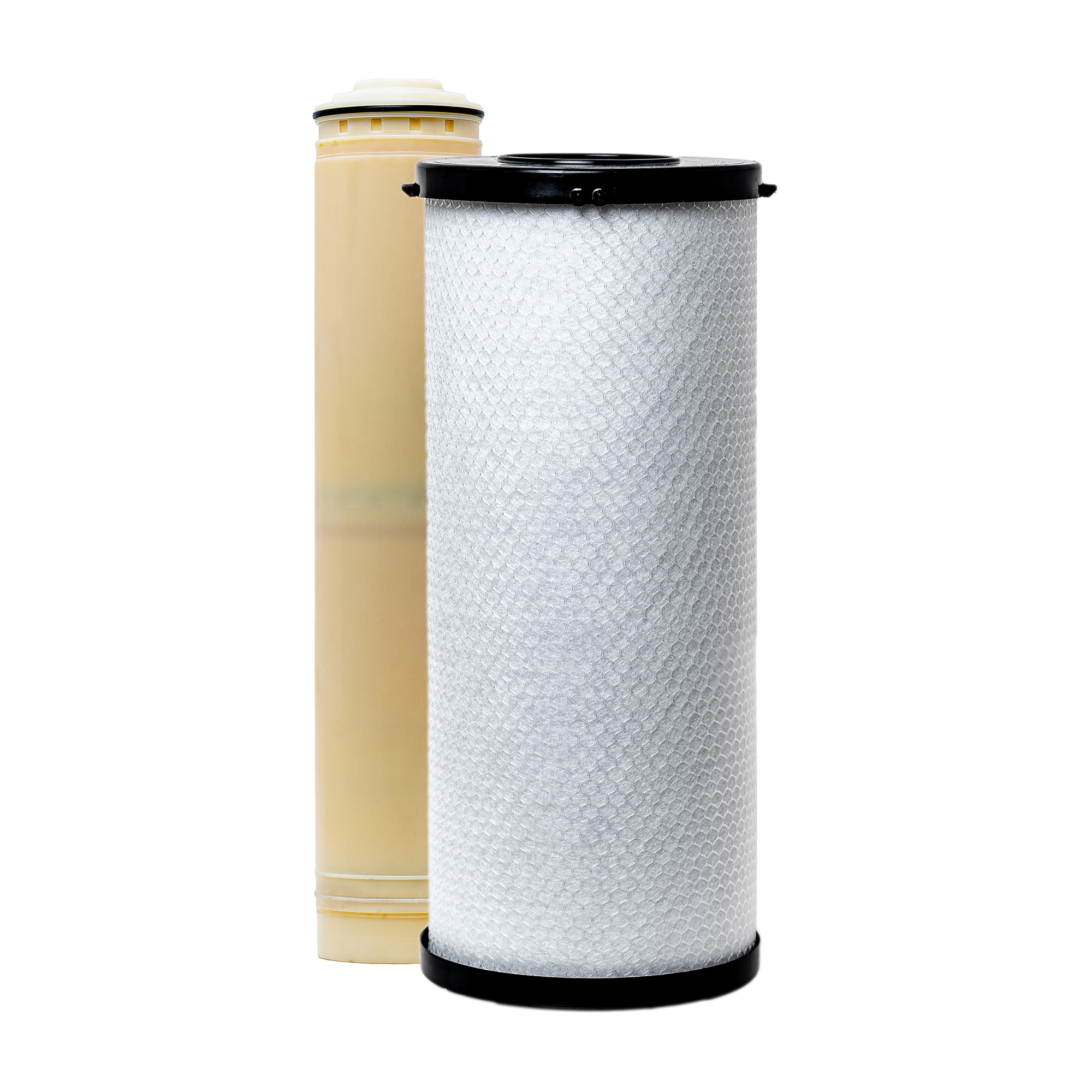

Cartridge life

The Radial Flow carbon block filter cartridge last for 12 months, it should then be replaced.

The TAC cartridge last for three years so every third year you need to replace both the Radial Flow and TAC cartridges - use the Cartridge Combo Pack.

Specifications

Rated Flow	Maximum 10 gpm (37.8 lpm)
Working Temp	40 – 104 °F (5 – 40 °C)
Working Pressure	10 – 90 psi – a pressure limiting valve must be installed when pressure exceeds 70 psi.
Working Conditions	For indoor use – protection required when installed outdoors.
Size	9 in x 9 in x 18 in (229 mm x 229 mm x 458 mm)
Min Net Weight	16.6 lbs (7.5 kg)
Contaminants Reduced	Scale, Sediment, Other Chemicals, Chlorine Taste and Odour

Conditions for Use

pH	6.5 to 8.5
Max Hardness	75 grains per gallon / 1069 mg/L
Chlorine	< 3 ppm
Iron, Ferrous	≤ 0.3 mg/L
Manganese	≤ 0.05 mg/L
Copper	≤ 1.3 mg/L
Oil & Phosphates	Zero*
Hydrogen Sulfide	Zero*

Influent water must not exceed these levels.

*Must be removed prior to HydroTAC®.

NOTICE: New copper should be used for a minimum of one month before placing the unit into service.

NOTICE: Untreated private well water may contain contaminants with levels outside of the operating guidelines. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

LEAD FREE*: The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Please read HydroTAC® instructions, terms & conditions, and limitations before having you system installed.
