Overview

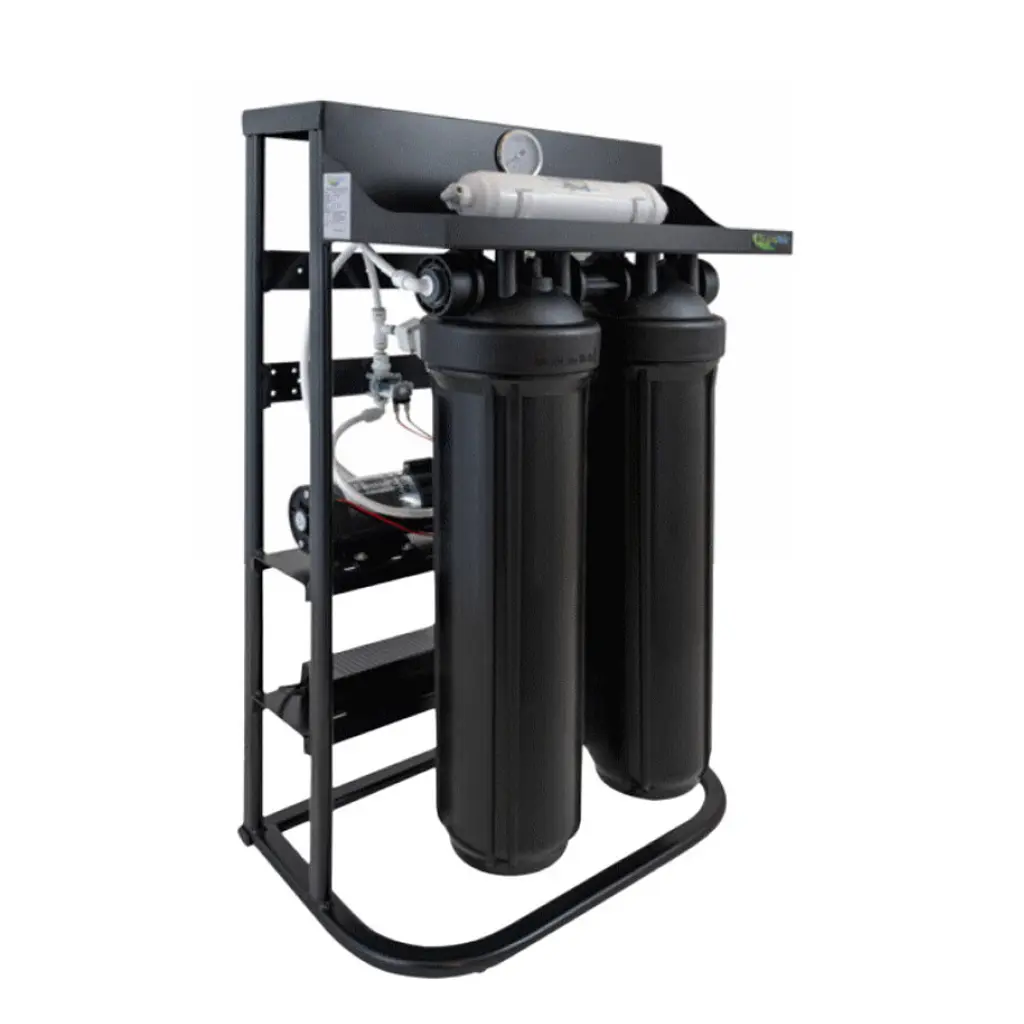

The Fountain Streamline 1000 High Flow RO System is designed for applications where a standard domestic reverse osmosis system simply can't produce enough purified water.

With twin 500 GPD reverse osmosis membranes, it can deliver up to 120 litres per hour, making it suitable for larger households, offices and other settings with higher drinking water requirements.

Water is purified through four stages of treatment, combining sediment and carbon pre-filtration, reverse osmosis and final carbon filtration. The system is mounted on a robust frame with an integrated pump and produces purified water directly, without requiring a separate storage tank.

Its higher output makes the Streamline 1000 particularly useful where larger quantities of RO water are needed throughout the day, without the wait associated with lower-capacity systems.

Is this right for me?

Choose this if

• You need more purified water than a typical domestic RO system can provide.
• You have a larger household or need RO water for an office or other higher-demand setting.
• You want purified water produced directly rather than relying on a storage tank.
• You have sufficient space for a larger, frame-mounted RO system.

Not ideal if

• Your household has relatively modest drinking water requirements. A smaller RO system such as the Streamline 600 may be more appropriate.
• Under-sink space is limited.
• You want a system that operates without electricity.
• You only need to improve chlorine taste and odour rather than comprehensive water purification.

What to check before buying

The Streamline 1000 is considerably larger than a compact under-sink RO system, so check the available installation space carefully.

You'll also need a suitable mains cold water supply, waste connection and electrical supply for the pump.

Consider how much purified water you genuinely need. The main reason to choose the Streamline 1000 is its higher production capacity; if you don't require that level of output, a smaller RO system may be the better fit.

What it reduces and what it doesn't

The Streamline 1000 combines pre-filtration with reverse osmosis to reduce a wide range of contaminants from drinking water.

Contaminant	Reduction
PFAS	✔
Lead and other heavy metals	✔
Chlorine, taste and odour	✔
Dissolved salts and minerals (TDS)	✔
Nitrates	✔
Fluoride	✔
Bacteria and other microorganisms	✔
Sediment and fine particles	✔

Concerned specifically about forever chemicals? Read our guide to PFAS in UK drinking water and the filtration methods used to reduce them.

What it doesn't do

The Streamline 1000 is a point-of-use purification system, not a whole-house filter, so it won't treat all the water entering your property.

Reverse osmosis also reduces naturally occurring dissolved minerals along with unwanted contaminants. If retaining the mineral content of your incoming water is important to you, a non-RO filtration system may be more suitable.

How it works

The Streamline 1000 is built around high-capacity filtration components designed to cope with greater water demand.

1. 20" 5 micron sediment filter - captures rust, sediment and other suspended particles before they reach the carbon filter and RO membranes.
2. 20" carbon block filter - reduces chlorine and organic contaminants while protecting the membranes from chlorine damage.
3. Twin 500 GPD reverse osmosis membranes - work together to separate dissolved salts and other contaminants from the incoming water, providing a combined capacity of 1000 GPD.
4. 12" coconut carbon post-filter - gives the purified water a final polish before it is delivered for use.

The system's twin pumps provide the pressure required by the two RO membranes, while rejected contaminants are carried away in the wastewater stream.

Specifications

Specification	Details
Filtration stages	4
RO membrane capacity	1000 GPD
RO membranes	2 x 500 GPD
Purified water production	Up to 120 litres per hour
Sediment pre-filter	20" 5 micron spun sediment
Carbon pre-filter	20" carbon block
Post-filter	12" coconut shell activated carbon
Pumps	2 x 500 GPD booster pumps
Inlet water pressure	Minimum 2 bar
Dimensions	Approx. 880mm (H) x 530mm (W) x 380mm (D)
Weight	Approx. 33kg
Storage tank	Not required
Installation	Frame mounted

What's included

• Fountain Streamline 1000 High Flow RO System with all four filtration stages
• Twin booster pumps
• Stainless steel drinking water tap
• Pressure gauge
• Frame-mounted system

Installation & placement

The Streamline 1000 is a frame-mounted system measuring approximately 880mm (H) x 530mm (W) x 380mm (D), so it requires more installation space than a compact under-sink RO unit.

Installation requires a suitable cold mains water supply, waste connection and electrical supply for the booster pumps. The supplied drinking water tap also requires a suitable mounting position at the sink or worktop.

Allow enough clearance around the system for routine servicing and replacement of the 20" pre-filters and RO membranes.

Because of the size, weight and plumbing requirement of the Streamline 1000, professional installation is recommended.

Maintenance & running costs

Routine maintenance involves replacing the sediment and carbon pre-filters, post-carbon filter and RO membranes as they reach the end of their service life.

Replacement frequency will depend on water quality and the volume of water produced. Changing the pre-filters when required is particularly important because they help protect the RO membranes and maintain system performance.

The pressure gauge provides a useful indication of operating conditions, while a noticeable reduction in purified water output can indicate that the system needs servicing.

Replacement filters and membranes are available separately.

FAQs

Who is the Streamline 1000 best suited to?

It is designed for higher-demand applications where a smaller domestic RO system may not produce enough purified water, including larger households, offices and other settings with regular demand throughout the day.

How much purified water can it produce?

The Streamline 1000 can produce up to 120 litres of purified water per hour, depending on incoming water conditions.

Does it need a storage tank?

No. The system produces purified water directly, so a separate RO storage tank isn't required.

Does the system need electricity?

Yes. An electrical supply is required to operate the twin booster pumps.

Does it come with a drinking water tap?

Yes. A stainless steel drinking water tap is supplied with the system.
