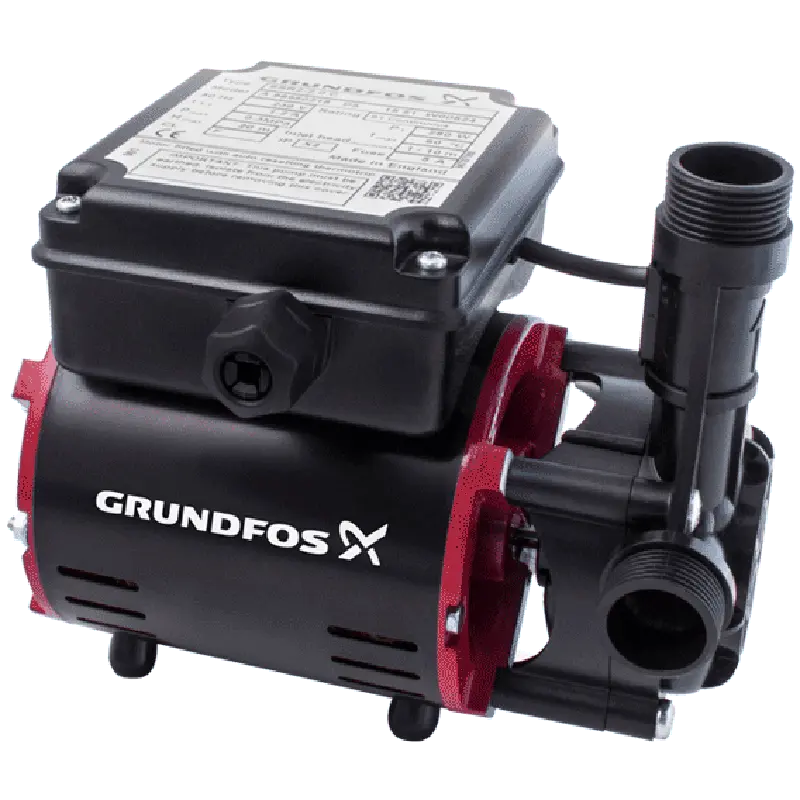

Increase your hot water pressure up to 2.0 bar with our hot water booster pump.

https://www.fountain-filters.co.uk/Hot-Water-Booster-Pump/0-CAAA010/PRAA125.htm

You can install our positive head hot water booster pump under your kitchen sink and it connects directly, via two 22mm push-fit flexible hoses, to your hot water supply.

When the lever on the tap is opened the hot water booster pump automatically energises and increases your hot water pressure, giving improved water flow and allowing customers with a gravity/low pressure system to use a high pressure tap.

This hot water booster pump is quiet and compact, and has been specifically designed to increase water pressure to a household's hot water supply. The quiet AC induction motor is smooth and reliable, and the regenerative design of impeller is ideal for overcoming air pockets that can be generated in a shower system.

This type of hot water booster pump is ideal where the plumbing route includes multiple bends and elbows.

Our hot water booster pump has been manufactured in Denmark and will boost your hot water up to 2.0 bar.

The outlet pipe has a built-in flow switch which activates the pump when it detects water flow, and deactivates the pump when the flow stops.

The flow switch requires a minimum of 0.5 litres flow per minute to operate. Two 22mm push-fit flexible hoses are included.

It has a compact design, low running noise and includes anti-vibration feet.

The pump can either be wired directly into a fused spur or you can plug in the 1.4m lead like a dishwasher.

** Hot water should be NO hotter than 65°C when using this pump. If your water is hotter than 65°C and the pump fails, we would not be able to offer a refund. **

***Must not be connected directly to mains water supply.***

Features

• Product code - 98950218
• Continuously rated pump
• Regenerative impeller design
• IPX2 water ingress protection
• Auto-resetting thermal cut out
• Anti-vibration feet
• Mains connection lead - 1.5m long
• Braided connection hoses with 22mm push-fit connections
• WRAS compliant

Technical Data

Supply voltage	230 V, 50 Hz
Power consumption	280 W
Rated current	1.2 A
Rating	Continuous operation (recommended minimum flow rate: 5 l/min
Enclosure class	IPX2 (when mounted on a horizontal surface)
Motor	AC induction
Inlet head (min - max)	1 to 10 m
Max developed pump head	20 m
Max operating pressure	3 bar
Minimum starting flow	0.5 l/min
Length	185mm
Width	150mm
Height	165mm
Weight	3.8kg
Noise level	55 to 65 dB (A) @ 1m
Warranty	1 year



Is the Hot Water Booster Pump compatible with 15mm pipes?

Yes it is. Just use 22mm to 15mm reducers. These are available at most good DIY stores.
